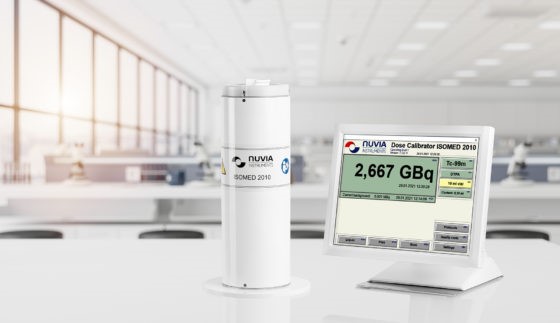

For over 60 years, we have been developing and assembling high quality dose calibrators, which makes us one of the most experienced manufacturers of these products. The result of this experience and continued cooperation with our customers is a modern, practical and user-friendly measuring system. Our PC-based dose calibrators such as ISOMED 2010 are used for fast and precise activity or volume activity determination of all radiopharmaceuticals used in nuclear medicine.

Benefits

PC-based Dose Calibrator running on Windows**

• Optional space-saving NetTop PC System
• Optional monitor with or without touch screen function
• Expandable nuclide database
• Calculation of the activity to assure the correct time of medication administration
• Integrated quality controls according to DIN 6855-11 (IEC 61948-4) and DIN 61303 (IEC 61303)
• Various mounting options

Key Figures

PC-based Dose Calibrator running on Windows**

• more than 30 nuclides
• 50 GBq (Tc-99m)
• 70 GBq (F-18)
• 5 % basic error

#	title	detail	detail
1	Measuring range: e.g. Tc-99m / F-18	40 kBq to 50/200* GBq (* 7% additional error)	60 kBq to 70/300* GBq
2	Measuring range settings	Automatically, alternatively fixed measuring range	//
3	Energy range for Gamma sources	25 keV to 3 MeV	//
4	Measurement time	With change of measuring range 2 s - 15 s Without change of measuring range 1 s - 3 s	//
5	Basic error	± 5 %	//
6	Measured value display	4-digit with display of unit, isotope, chemical compound, container and content	//
7	Stored isotope table	Ba-140, C-11, Co-57, Co-58, Co-60, Cr-51, Cs-137,	Cu-64, Er-169, F-18, Fe-59, Ga-67, Ga-68, Hg-197, I-123, I-124, I-125, I-131, In-111, In-113m, Ir-192, Lu-177, Mn-54, Mo-99, N-13, O-15, Ra-223, Re-186, Re-188, Se-75, Sm-153, Sr-89, Tc-99m, Tl-201, Xe-133, Y-86, Y-90, Yb-169
8	Containers	Injection syringes 1 ml, 2 ml, 3 ml, 5 ml, 10 ml, 20 ml Bottles 2 ml, 5 ml, 10 ml (P6), 15 ml, 20 ml Ampoules 5 ml Capsules for Co-57, Co-58, I-131 Tightly enclosed for Cs-137, I-125, Ir-192 Content (sample quantity) 0.1 ml – 99.9 ml		//
9	Measurement chamber	Chamber Ø 120 mm, measuring chute Ø 47 mm	//
10	Dimensions	shielding 4 mm Pb basic shielding, additional shielding 20 mm or 50 mm	//
11	PC system	NetTop, from Windows 10**	//
12	Monitor	Standard TFT monitor or touch screen monitor	//

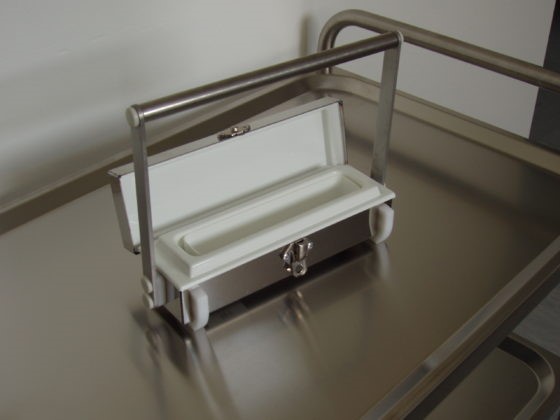

Significant reduction of the radiation exposure, especially the partial body dose of the hands.

Designed for various syringe types with different lock systems (also for PET-applications).

Versions with clip lock, screw or bayonet lock and fitted lead glass window as well as plexi glass syringe shieldings for β-emitting nuclides.

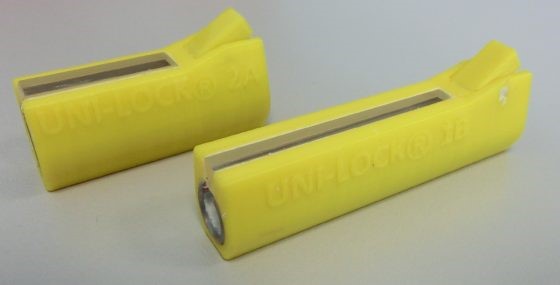

Significant reduction of radiation exposure, especially partial body dose of the hands

Designed for various syringe types with different lock systems (also for PET-applications)

Versions with clip lock, screw or bayonet lock and fitted lead glass window as well as plexi glass syringe shieldings for β-emitting nuclides

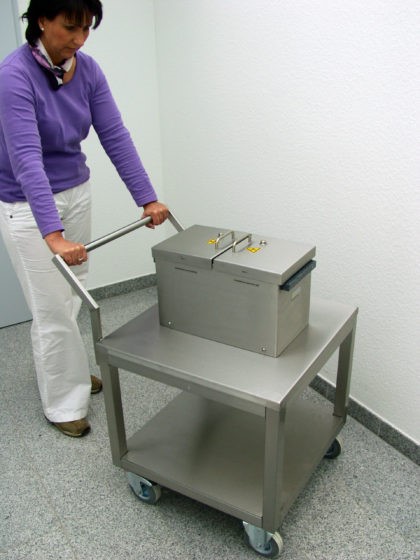

Manual trolley designed for transportation of PET radiopharmaceuticals Lead shielding: 70 mm Covered with stainless steel coating Inner layout optimised to minimise irradiation of staff

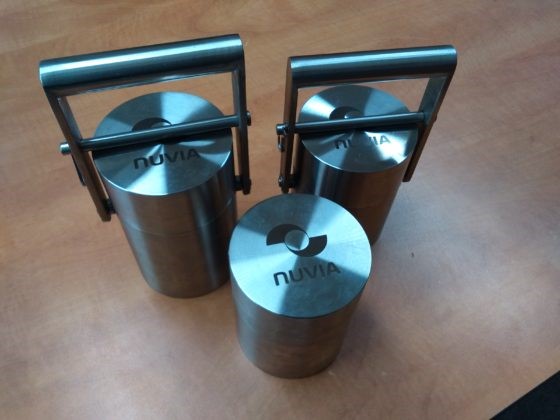

Complete construction made of stainless steel Integrated lead shielding (sandwich construction – no visible lead) Container shape, size and shielding thickness as desired, production according to customer-specific requirements Various designs and possibilities according to particular field of use

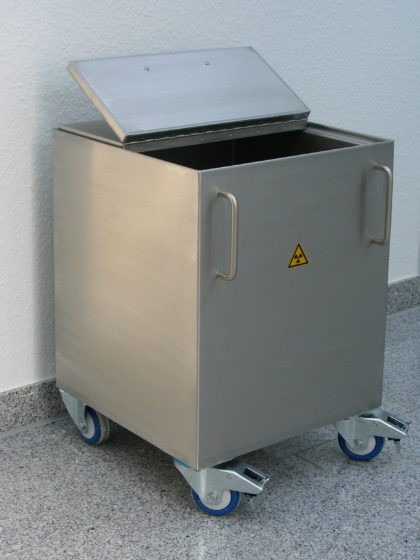

Complete construction made of stainless steel Integrated lead shielding (sandwich construction) Shape, size and shielding thickness upon customer‘s specifications Various types and shapes of opening lids.

For body protection, a U-formed or completely closed lead castle is built on the work bench. Protected by the shielding, radiopharmaceuticals can be handled this way. The lead shielding consists of lead components according to DIN 25407, e.g. with 50 mm shielding capacity. The lead shielding can be expanded by a lead glass window to be mounted.

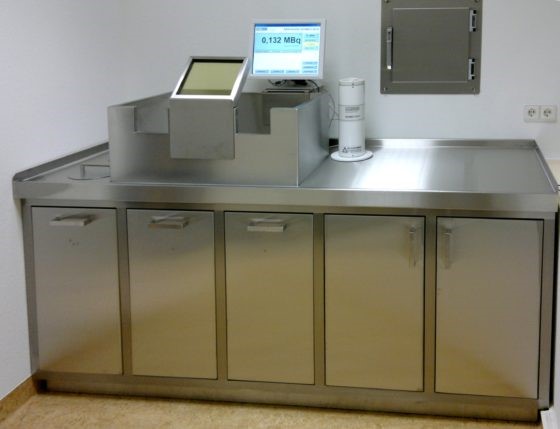

The work bench consists of a stable steel frame construction to carry heavy objects (up to 850 kg/m²), e.g. lead shielding, Tc-generators, etc. In accordance with the standards for working with unsealed radioactive materials, the stainless steel table plate is provided with a raised profle edge (8 mm) on all sides. Beside standard dimensions we can also supply work benches with customer-specific dimensions.

Unigamma M is the newest multi-detector, fan beam Bone Densitometer DEXA (Dual Energy X-ray Absorptiometry) manufactured by l'acn. The 3 or 5 channels architecture allows reduced scan times and better image resolution. Moreover, the small fan-beam configuration minimizes the geometrical distortion, ever on whole body scans. For special applications, it is also possible to use the unit i a pencil-beam mode, using only the central channel.

MONOGAMMA Thyroid Uptake System is produced in two versions: one with moving collimator and one with static collimator. Both versions are equipped with GAMMAINTERFACE I/O unit, which allows data transmission between the 2" x 2” NaI(Tl) probe and a Personal Computer. The WUPTAKE software, supplied withMONOGAMMA runs under WINDOWS XP operating system and allows data acquisition and graphical elaboration, to organize a patients database and to perform a spectrum analysis of any radioactive isotope wich may be employed..

MONOGAMMA Thyroid Uptake System is produced in two versions: one with moving collimator and one with static collimator. Both versions are equipped with GAMMAINTERFACE I/O unit, which allows data transmission between the 2" x 2” NaI(Tl) probe and a Personal Computer. The WUPTAKE software, supplied withMONOGAMMA runs under WINDOWS XP operating system and allows data acquisition and graphical elaboration, to organize a patients database and to perform a spectrum analysis of any radioactive isotope wich may be employed.By a built in MCA analyser, MULTICROMATOGAMMA 1024 ensures a comprehensive quality control, both for the chemical composition of the marker and the energy of the emission (i.e. , for the research of possible radioactive impurities in the compound).

• 1024 acquisition channels
• Measurements of Low / Medium / High Energy
• Advanced software for Windows Operating Systems (including Windows 8)
• Search of Purity radionuclide (Mo99)
• Data Base of the measurements
• Traceability absolute in reports

gammaCell Twin is a manipulation cell of radiopharmaceuticals in double chamber. It is designed to allow the manipulation of radiopharmaceuticals preparations in accordance with the GMP (Good Manufacturing Practice), namely, in safe conditions for both the operators and the patients. gammaCell Twin is made up of two adjacent manipulation cells connected by a pass-through chamber, allowing to insert syringes or containers of radiopharmaceutical preparations. One workspace can be set to be used as an isolator, and the second one can be used for conventional kit preparations and as pre-chamber for the isolator. An Automatic Fractioning System, can be optionally housed in the hot cell, making it easy to prepare the doses to be used in the daily practice of the Nuclear Medicine Centre. 99mTc generators access for radiopharmaceutical preparation and storage, waste management, dose measurement (see Dose Calibrator section) occur in a certified Vertical Laminar Flow throughout the whole workspace. Flexibility on shielding thickness and handling materials for Beta, Gamma and PET Emitters.

MONOGAMMA Thyroid Uptake System is produced in two versions: one with moving collimator and one with static collimator. Both versions are equipped with GAMMAINTERFACE I/O unit, which allows data transmission between the 2" x 2” NaI(Tl) probe and a Personal Computer. The WUPTAKE software, supplied withMONOGAMMA runs under WINDOWS XP operating system and allows data acquisition and graphical elaboration, to organize a patients database and to perform a spectrum analysis of any radioactive isotope wich may be employed..VIDEOGAMMA 4480 is an automatic gamma counter which combines the high measurement capacity of 480 tubes with 4 detectors. This gamma counter can also supply more precise measurements than those performed with a one detector system. VIDEOGAMMA Rack is the first apparatus of a new generation of gamma counters. It is the first device at all that allows measurements without needing to download the tubes from their rack. It is the first instrument in the world designed for carrying automatically tubes from their rack to the detection system. For the first time the area where measurement takes place and the area where tubes are positioned are separated. In this way any kind of interference is excluded.
