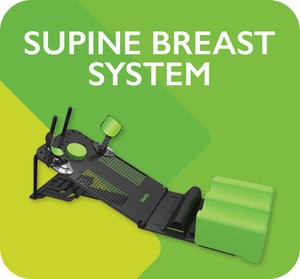

Klarity Supine Breast System

The Klarity Supine Breast System is a complete system for supine breast and torso positioning. It comes as a complete system and includes two arms cups, two wrist cups, two hand posts, a removable head cup, adjustable bottom-stopper, and a KneeFix Foam Cushion. An optional wing board and compatible vacuum bags are also available. The baseplate is made of durable, lightweight carbon fiber and includes a fiducial marker along the center for tracking the spine in relation to the baseplate.

SPECIFICATIONS

• 131cm (Length) x 41cm (Width).
• Carbon Fiber.
• Maximum Height is 58.2cm at 25°.
• Compatible with the R612-BTCF WingSpan™ Baseplate.

The Klarity WingSpan™ Baseplate features secure arm support for upper body treatment and diagnostic procedures.It is comfortable and lightweight, and allows for easy transporting, indexing, and re-positioning, with low attenuation.

SPECIFICATIONS

• 56.1cm (Length) x 58cm (Width)x 16.5cm (Height).
• Carbon Fiber.
• Also available as MR Compatible
• Compatible with standard Silverman head supports
• Can be used alone and is also compatible

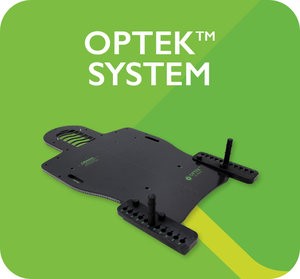

The Klarity Optek™ Overlay is a comfortable and adaptable S-type Overlay for head and neck treatments. The lower portion gently tapers for patient comfort and the overlay is equipped with additional indexing around the edges. The Carbon Fiber Optek™ Overlay is extremely lightweight and CT-compatible. Adjustable hand grips assist with shoulder retraction. The Optek™ Overlay is compatible with all S-Type Masks and is dual-configured for adult and pediatric patients.

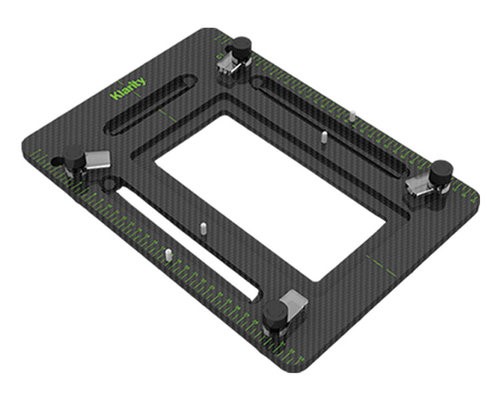

The Klarity MultiFix™ Head Only Baseplate is a lightweight and simple positioning solution for head placement. Made of strong and durable carbon fiber, the Head Only MultiFix™ is fully indexable, and compatible with both U-Frame and O-Type head masks.

The baseplates can be used with standard Silverman headrests, and options are available for prone positioning. Heat-activated Klarity Cushions™ provide neck support and additional accessories are available, such as vacuum bags, carbon fiber and Silverman head rests, and indexing bars.

SPECIFICATIONS

• 35.5cm (Length) x 25.5cm (Width).
• Carbon Fiber.
• Compatible with all standard U-frame and O-type masks.
• Compatible with the R605-HPCF Prone Head MultiFix™ (sold separately).

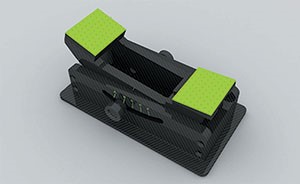

The Klarity Prone Head MultiFix™ is a lightweight, easily adjustable option for prone head placement that fits on top of the Head Only MultiFix™.

SPECIFICATIONS

• 35.8cm (Length) x 25.7cm (Width).
• Carbon Fiber.
• Cleanable cushion for forehead and chin.
• Compatible with the R605-HCF Head Only MultiFix™.

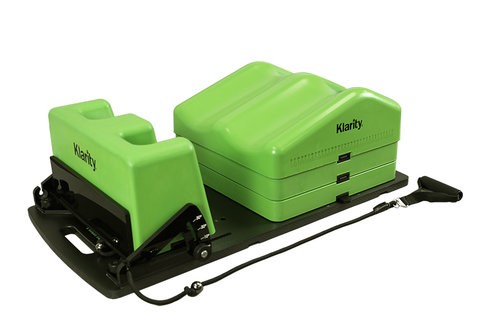

The Klarity Leg Positioner is a comfortable and simple system for indexing the lower extremities. The system indexes to any couch top, and can be combined with other immobilization systems for compatible positioning.

The Klarity Leg Positioner is a complete set that includes baseplate, leg support, two elevation blocks, foot cushion, and hand grips. Sturdy foam cushions reduce patient fatigue, and the angle of the feet is fully indexable and adjustable. The acrylic hand grips are a comfortable option for shoulder suppression, and the ball and socket locking feature allows for reproducible tension in 5cm increments. Two elevation blocks are included for height adjustment. The KneeFix Cushion and Elevation Cushions can also be indexed directly to the couch top.

SPECIFICATIONS

• 86.4cm (Length) x 44.5cm (Width) x 26.7cm (Max Height).
• Elevation wedges at 10/20/30.
• Carbon Fiber.
• Also available as MR Compatible.
• Included Elements:
• Baseplate.
• KneeFix Cushion.
• Two Elevation Cushions.
• Foot Cushion.
• Optional Handgrips.

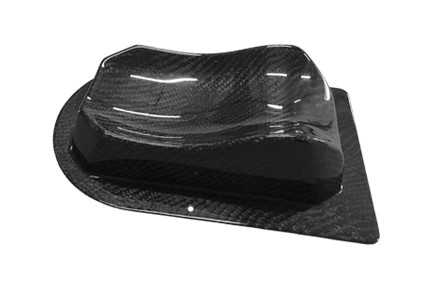

Carbon Fiber Head Supports fit a variety of tabletop and couch types. They can be ordered individually, or as a set of six for all different heights. Carbon Fiber Head Supports index to standard silverman pins, and can be used with any baseplate that uses standard silvermans. The carbon fiber material is extra durable and lightweight.

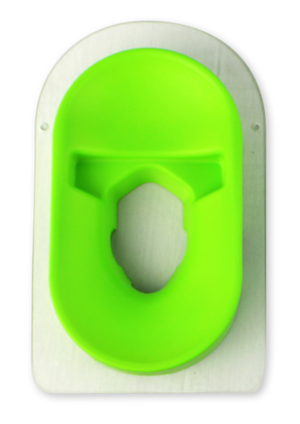

The NEW Klarity Prone Head Support offers comfortable prone positioning by supporting the forehead, cheeks and chin, without compressing the area around the eyes, nose, and mouth. The Prone Head Support cushion is attached to an acrylic plate that indexes to standard silverman pins. It is compatible with any prone positioning baseplate that uses silverman pins for indexing.

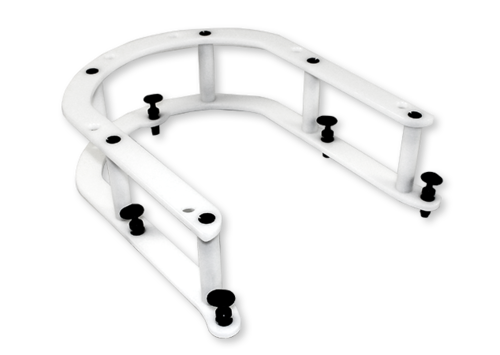

The Klarity SRS Adaptor is a simple attachment that fits on top of your existing s-type baseplate. The SRS Adaptor clicks into standard S-type mask holes of the baseplate just like a mask.

With the Adaptor in place, both bottom and top Klarity SRS masks can be easily and securely attached. Mask height can be adjusted between 0-4mm at each pin location using the Simple Shim System™, included with Klarity SRS Masks.

Our SRS Adaptor is ideal for clinics that want high precision SRS treatment but without the price tag and complexity of a complete baseplate system. The Klarity SRS Adaptor is compatible with standard S-type baseplates as well as standard Silverman head supports. It is compatible with Klarity SRS Masks (S-2000).

SPECIFICATIONS

• Compatible with standard S-type Baseplates.
• Compatible with Klarity SRS Masks (S-2000).

CERRO® products are low melting temperature alloys used as thermal fusibles for forming or temporarily fixing parts. They are used in applications such as eyewear, the manufacture of spatial parts and aeronautics. The METACONCEPT Group offers a range of specific alloys whose melting temperatures, guaranteed by the precise composition of the alloy, provides the behavioural change required (solidus/liquidus) in safety systems or when forming parts in industrial or medical fields. These products are supplied as bars or small ingots; they can also be manufactured in the form of sticks, flat bars or large ingots. Fusible alloys undergo dimensional changes (expansion/shrinkage) depending on the casting and cooling time. Generally, fast casting with a cooling time of less than 15 minutes optimises stability.
